Door/Window Casing 3-31/32" - 6

Door/Window Casing 3-31/32" - 6

Door/Window Casing 3-31/32" - 6

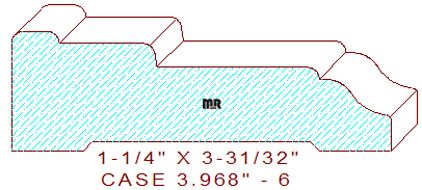

This bold 3-31/32" - 6 door/window casing measures wide by 1-1/4" thickness. The profile comprises three different widths of cascading radius edge fillets that transition into an ogee on the thinner side of the pattern. All edges have been eased for design appeal and to aid in finishing. The door casing is oriented with the thicker side of the profile up against the inside fixed fence in the moulder. This will enable the operator to move the pressure shoe element laterally, away from the fence, while seating the pressure element down on the center flat portion of this profile.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.968
Depth of Cut: 1.093
Bottom Cutter Head
Width: 3.968
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$297.77
$278.90
Total:
$576.67
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.64
$297.77
Total:
$614.42
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.52
$316.64
Total:
$652.16
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
