Casing Moulding 4" - 10

Casing Moulding 4" - 10

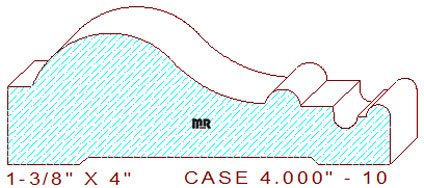

This beautiful casing moulding 4" - 10 measures 4.000" wide by 1.375" thickness. The profile is comprised of a 1/4" wide horizontal line connected to a 7/8" and a 1-3/8" tangent radiuses creating a large cyma reversa in the center, attached to a 3/8" wide half round circle, small fillet, scotia, tiny horizontal line and a 1/8" radius half round bead on the thin side of the pattern. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Utilize some of our user-friendly moulding profiles, all professionally designed by an accomplished woodworker and former Weinig moulder/grinder field service technician.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = 1.000" (top knives) & .093" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
