Door/Window Casing 4" - 103
Door/Window Casing 4" - 103

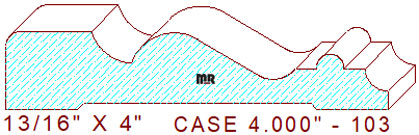

This classic 4" - 103 colonial door/window casing measures 4.000" wide by .812" thickness, allowing the detail to be machined out of four-quarter lumber. The time-honored profile consists of a 57/64" wide horizontal line with a 5/32" eased edge on the top left, connected to a 15/32" radius cove that transitions into a deep sloping two tangent radius cyma reversa in the center, joined to a 9/32" wide half round bead flanked by two 7/32" wide horizontal lines and a 1/4" radius cavetto leaving a 3/16" thickness dimension on the thin side of the design.
We offer many different sizes in this colonial style design; here are just a few patterns in the same width we thought you might like to review and consider, door casing 4.000" - 22, window casing 4.000" - 58 and door/window casing 4.000" - 114.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.00
$290.00
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$309.00
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$337.50
Total:
$675.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
