Door/Window Casing 4" - 15
Door/Window Casing 4" - 15

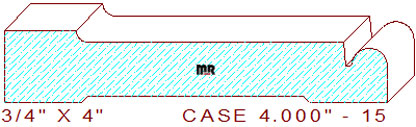

This beaded edge 4" - 15 door/window casing measures 4.000" wide by .750" thickness, enabling the detail to be milled out of four-quarter lumber. The modest profile is composed of a 3/4" wide horizontal line segment on the left. This area was intentionally left sharp for use with one of our many backband or radius edge profiles. It joins to a 2-13/16" wide cong'e made from a 1/8" cove in the center, attached to a 1/16" wide by 1/4" deep sunk fillet with a 3/8" wide recessed bead on the right side of the pattern. We have many profiles that would match up nicely with this design. Here is just one you may want to review and consider, baseboard 5.500" - 81.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.531
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.00
$290.00
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$309.00
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$337.50
Total:
$675.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
