Casing Moulding 4" - 17

Casing Moulding 4" - 17

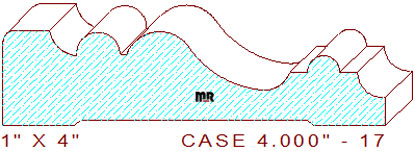

This delightfully elegant casing moulding 4" - 17 measures 4.000" wide by 1.000" thickness, the detail will require five quarter lumber for milling on an industrial molder. The unique profile is composed of a 31/64" wide line with a 1/8" eased outer edge on the left, connected to a 21/64" cove and a 29/64" wide half round circle with a 1/16" wide sunk fillet, attached to a three tangent radius cyma reversa that joins to a 11/32" wide half round bead flanked by small line segments and a 17/64" cove with a 3/64" eased edge on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

We're delighted you found a functional profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .875" (top knives) & .062" (bottom cutters.)
