Door/Window Casing 4" - 26
Door/Window Casing 4" - 26

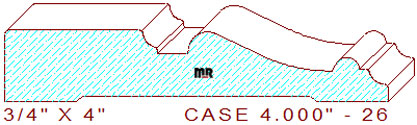

This decorative 4" - 26 colonial door casing measures 4.000" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The time-honored profile is composed of a 1-7/16" broad horizontal line with a 3/64" eased outer edge on the left, connected to a 5/32" cove with a 1/16" vertical step that joins to a 5/16" wide sunk fillet and a shallow down-sloping two tangent radius cyma reversa in the center, merged with a 9/32" wide thumbnail shaped bead and a 3/32" broad line segment with an 11/64" cove and a 3/64" eased edge on the right side of the pattern. We offer a bolder alternative profile in the same width that will require a greater thickness of lumber for your review and consideration, door casing 4.000" - 22.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.750
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$290.00
Total:
$599.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$328.00
$309.00
Total:
$637.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$356.50
$337.50
Total:
$694.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
