Door/Window Casing 4" - 34
Door/Window Casing 4" - 34

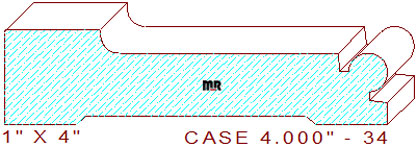

This pencil bead 4" - 34 door/window casing measures 4.000" wide by 1.000" thickness, permitting the pattern to be machined out of five-quarter lumber. The embellished profile is composed of a one-inch broad flat line with a 3/64" eased edge on the top left, connected to a 3-1/2" wide by 1/4" deep cong'e derived from a 3/16" radius cove in the center, attached to a 3/32" wide by 13/64" deep sunk fillet that merges with a 13/32" wide pencil bead. The right side of the detail consists of a ¼" high vertical fillet joined to another 3/32" deep sunk fillet that transitions into the decorative bead on the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.000
Depth of Cut: 0.187
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.438
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
Not Needed
$290.00
$290.00
Total:
$714.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
Not Needed
$309.00
$309.00
Total:
$759.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
Not Needed
$337.50
$337.50
Total:
$826.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
