Door/Window Casing 4" - 49
Door/Window Casing 4" - 49

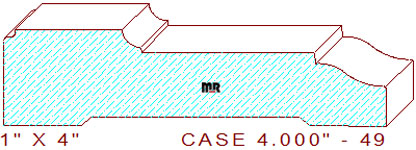

This beautiful 4" - 49 door/window casing measures 4.000" wide by 1.000" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The decorative profile is comprised of a 1-15/64" wide horizontal line flanked by two tangent 3/64" radiuses on the outer edge, joined to a 13/64" cavetto with a 1/16" vertical drop on the inner edge, connected to a 1-13/16" wide line segment with a 7/64" deep step, attached to a two tangent radius ogee with a 3/64" eased edge on the right side of the design. We offer a few other similar profiles in the same width for your review and consideration, door/window casing 4.000" - 148, door casing 4.000" - 121 and door casing 4.000" - 134.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.781
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$290.00
Total:
$599.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$328.00
$309.00
Total:
$637.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$356.50
$337.50
Total:
$694.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
