Door/Window Casing 4" - 5
Door/Window Casing 4" - 5

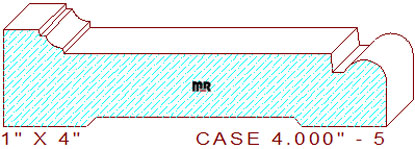

This modern 4" - 5 door/window casing measures 4.000" wide by 1.000" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The embellishing profile is composed of a 3/8" broad line segment with a 1/16" wide by 1/16" deep notch on the top left, connected to a 3/16" cove with another 1/16" drop in elevation, joined to a 2-13/16" wide line segment in the center, attached to a 3/16" deep by 1/8" wide sunk fillet merged with a 7/16" wide half round bead at an 11/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.701
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$310.00
$291.00
Total:
$601.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$329.00
$310.00
Total:
$639.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$357.50
$338.50
Total:
$696.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
