Door/Window Casing 4" - 50
Door/Window Casing 4" - 50

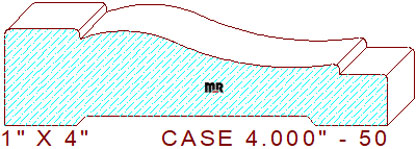

This hefty 4" - 50 colonial door/window casing measures 4.000" wide by 1.000" thickness, requiring the use of five-quarter lumber for milling on an industrial moulder. The traditional profile is composed of a 25/32" wide by 7/64" raised fillet with 1/16" rounded edges on the left, the outer edge in the template design was left straight to utilize any of our many radius edges to give this profile a custom appeal. The center of the detail consists of a 2-23/32" wide two tangent radius cyma reversa with a 3/32" vertical step, joined to a 1/2" broad line segment with a 1/16" eased edge, leaving a 17/32" thickness dimension on the right side of the pattern. We offer an alternative profile in the same style that's able to be machined out of four-quarter lumber for your review and consideration door/window casing 4.000" - 69.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.689
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$310.00
$291.00
Total:
$601.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$329.00
$310.00
Total:
$639.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$357.50
$338.50
Total:
$696.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
