Door/Window Casing 4" - 82
Door/Window Casing 4" - 82

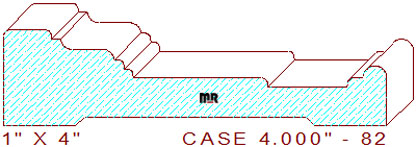

This embellished 4" - 82 door/window casing measures 4.000" wide by 1.000" thickness, allowing the detail to be machined out of five-quarter lumber. The lavish profile is comprised of a 1/2" wide by 3/32" tall raised fillet with a 3/32" eased outer edge on the top left, joined to a 3/32" flat line that merges with a bidirectional cong'e derived from 1/8" radiuses. It's connected to two 1/16" quarter round arcs and a 1-13/32" flat line segment with a 1/16" round edge in the center, attached to a 27/64" wide sunk fillet with a 5/32" upward step and a 1/4" wide half round bead on the right side of the design. We offer many decorative baseboard patterns to compliment this detail; this one was intentionally designed to match this profile, baseboard 6.000" - 135.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.656
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$290.00
Total:
$599.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$328.00
$309.00
Total:
$637.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$356.50
$337.50
Total:
$694.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
