Door/Window Casing 4" - 97
Door/Window Casing 4" - 97

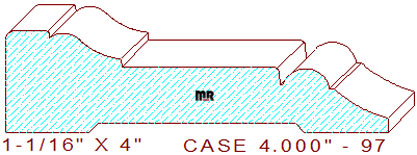

This beautiful 4" - 97 door/window casing measures 4.000" wide by 1.062" thickness, allowing the detail to be machined out of four-quarter lumber. The attractive profile is comprised of a 15/32" wide raised fillet with a 3/32" eased outer edge on the top left. It's connected to a down-sloping two tangent radius ogee with a 5/64" vertical step merged to a 1-21/32" broad line segment in the center. It's joined to a 1/32" wide by 3/16" deep sunk fillet and a 31/64" wide half round bead, attached to a 3/64" broad line and a 1-25/64" cove with a 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 1.062
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$310.00
$291.00
Total:
$601.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$329.00
$310.00
Total:
$639.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$357.50
$338.50
Total:
$696.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
