Door/Window Casing 4-3/32"
Door/Window Casing 4-3/32"

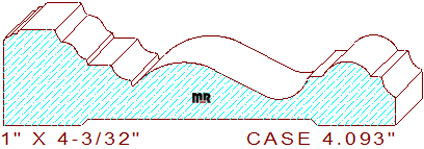

This intricate 4-3/32" door/window casing measures 4.093" wide by 1.000" thickness, enabling the pattern to be machined out of five quarter lumber. The embellished profile is comprised of an 11/32" broad line segments with two tiny cascading quarter round beads on the top left, connected to a shallow ¼" cove and ogee with a 1/16" drop in elevation, attached to a 1/4" broad line segment and a 3/16" cavetto that transitions into a two tangent radius cyma reversa in the center, merged to a 1/2" wide convex arc flanked by small fillets and a 7/32" cove with a 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.093
Depth of Cut: 0.849
Bottom Cutter Head
Width: 4.093
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$314.21
Not Needed
Total:
$314.21
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.58
Not Needed
Total:
$333.58
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$362.64
Not Needed
Total:
$362.64
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
