Door/Window Casing 4-1/8"
Door/Window Casing 4-1/8"

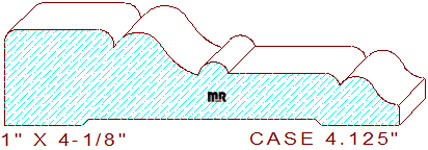

This astonishing 4-1/8" door/window casing measures 4.125" wide by 1.000" thickness, allowing the detail to be machined from five-quarter lumber. The gorgeous profile is composed of a 1-5/32" wide raised fillet on the left with a 1/8" eased outer edge and 11/64" inside edge, connected to a transient elevation changing two tangent radius cyma reversa with a 5/16" wide half round bead in the center, joined to a 1-11/64" wide straight flat line with an 11/64" round-over that transitions into another smaller cyma reversa with a 3/64" eased edge on the right side of the design. We offer an additional comparable profile in a slightly larger width for your review and consideration, door/window casing 4.250" - 30.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.125
Depth of Cut: 0.968
Bottom Cutter Head
Width: 4.125
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$296.50
Total:
$612.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.50
$316.00
Total:
$651.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$364.75
$345.25
Total:
$710.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
