Door/Window Casing 4-1/8" - 1
Door/Window Casing 4-1/8" - 1

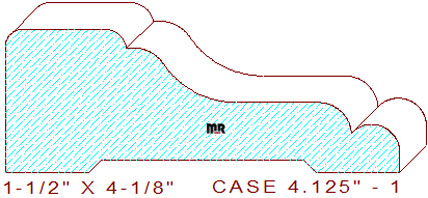

This tall 4-1/8" - 1 door/window casing measures 4.125" wide by 1.500" thickness, requiring the use of eight-quarter lumber to mill this pattern on an industrial moulder. The elegant profile is composed of a 1-17/64" wide by 13/64" tall raised fillet with a 3/16" outer and a 13/64" rounded inner edge on the top left, attached to a down-sloping free flowing two tangent radius cyma reversa in the middle, tangent to a 55/64" broad flat line with an 11/32" radius edge, joined to a 1/2" wide half circle on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.125
Depth of Cut: 1.375
Bottom Cutter Head
Width: 4.125
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.50
$296.50
Total:
$632.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.00
$316.00
Total:
$671.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$384.25
$345.25
Total:
$729.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
