Door/Window Casing 4-1/8" - 2
Door/Window Casing 4-1/8" - 2

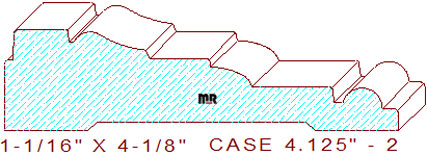

This AWI 4551 door/window casing 4-1/8" - 2 measures 4.125" wide by 1.062" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The beautifully ornate profile is composed of a 3/32" broad line segment with a 1/16" eased outer edge at a 3/4" thickness dimension on the top left, attached to a 9/16" wide by 5/16" tall raised fillet with 3/64" eased edges that transitions into a 1/16" wide sunk fillet and a small two tangent radius cyma reversa with a down-sloping beveled edge, connected to a 5/8" wide by 3/32" perpendicular lines with a two tangent radius elliptical shaped arc in the center. The right side of the design consists of a 27/64" broad line joined to a 3/32" wide by 11/64" deep sunk fillet, merged to a 27/64" wide half-round bead and an 11/64" broad line with a 1/16" rounded edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.125
Depth of Cut: 1.044
Bottom Cutter Head
Width: 4.125
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$296.50
Total:
$612.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.50
$316.00
Total:
$651.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$364.75
$345.25
Total:
$710.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
