Door/Window Casing 4-1/8" - 5

Door/Window Casing 4-1/8" - 5

Door/Window Casing 4-1/8" - 5

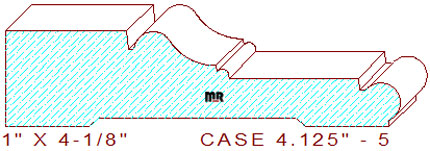

This beaded edge 4-1/8" - 5 door/window casing measures 4.125" wide by 1.000" thickness, permitting the pattern to be machined out of five-quarter lumber. The fashionable pattern is composed of a 1-17/64" wide flat line on the top left, the outer edge was left square for the use of many of our beautiful backband profiles, here is one you may want to review and consider, backband 1.500" - 2. This section is joined to a 1/16" wide by 3/16" deep sunk fillet, attached to a beautiful two tangent radius cyma reversa with a small vertical step and tiny bead in the center, connected to a 1-23/64" wide line segment and a 1/16" wide by 1/8" deep sunk fillet with a 23/64" wide three-quarter round bead on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.000
Depth of Cut: 0.115
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.125
Depth of Cut: 0.745
Bottom Cutter Head
Width: 4.125
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$87.50
(Template not needed)
Not Needed
$306.25
$286.75
Total:
$680.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$94.50
(Template not needed)
Not Needed
$325.75
$306.25
Total:
$726.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$101.50
(Template not needed)
Not Needed
$345.25
$325.75
Total:
$772.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
