Door/Window Casing 4-1/8" - 6
Door/Window Casing 4-1/8" - 6

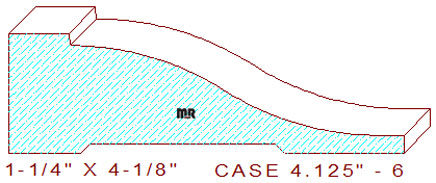

This beautifully bold 4-1/8" - 6 door/window casing measures 4.125" wide by 1.250" thickness, necessitating the use of six-quarter lumber for milling on an industrial moulder. The beautiful profile is comprised of a 5/8" wide by 1/8" tall raised fillet on the top left, attached to a three-inch convex arc tangent to a three-inch concave semicircle creating a graceful cyma reversa, joined to a 1/4" line segment leaving a 3/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.125
Depth of Cut: 1.063
Bottom Cutter Head
Width: 4.125
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$296.50
Total:
$612.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.50
$316.00
Total:
$651.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$364.75
$345.25
Total:
$710.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
