Door/Window Casing 4-1/8" - 7
Door/Window Casing 4-1/8" - 7

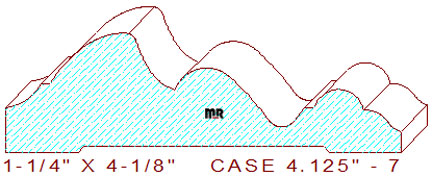

This elegant 4-1/8" - 7 door/window casing measures 4.125" width by 1.250" thickness, requiring the use of six-quarter lumber for machining on an industrial-grade molder. The sumptuous profile contains a 1/2" cove and a 1/8" wide horizontal fillet connected to a beak-shaped convex arc on the top left. The special section merges with a three tangent radius s-shaped curvature in the center to a half-round bead flanked by a tiny horizontal fillet on the left and a small ogee on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.125
Depth of Cut: 1.040
Bottom Cutter Head
Width: 4.125
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$296.50
Total:
$612.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.50
$316.00
Total:
$651.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$364.75
$345.25
Total:
$710.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
