Door/Window Casing 4-3/16" - 2
Door/Window Casing 4-3/16" - 2

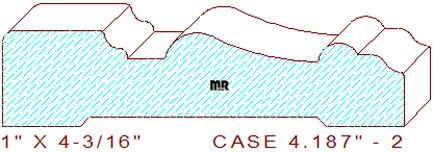

This hefty 4-3/16" - 2 colonial casing measures 4.187" wide by 1.000" thickness, necessitating the use of five-quarter lumber for milling. The old world profile is comprised of a 1-1/16" broad line segment with a 1/8" eased outer edge on the top left, attached to a small cove shaped two tangent radius cyma recta that transitions into a 25/64" wide sunk fillet, connected to an elongated cyma reversa joined with a 27/64" wide semicircular arc in the center, attached to a slight ogee tangent off of a small horizontal line with a 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.187
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.187
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.72
$299.72
Total:
$599.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$319.47
$319.47
Total:
$638.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$349.09
$349.09
Total:
$698.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
