Door/Window Casing 4-3/16" - 3
Door/Window Casing 4-3/16" - 3

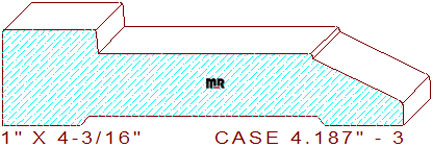

This modern 4-3/16" - 3 door/window casing measures 4.187" wide by 1.000" thickness, necessitating using five-quarter lumber for machining on an industrial moulder. The beautiful modest profile is composed of a one-inch wide by one-quarter inch tall raised fillet with 3/64" eased edges on the top left, connected to a 2-1/4" broad horizontal line segment with a 1/16" drop in elevation in the center, joined to a 25.778-degree angled line with a 3/32" rounded edge on the right side of the design. We offer a beautiful simple mopboard moulding that would surely compliment this pattern for your review and consideration, baseboard 7.250" - 57.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.187
Depth of Cut: 0.973
Bottom Cutter Head
Width: 4.187
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$319.47
$299.72
Total:
$619.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$339.22
$319.47
Total:
$658.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.84
$349.09
Total:
$717.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
