Door/Window Casing 4-1/4" - 11
Door/Window Casing 4-1/4" - 11

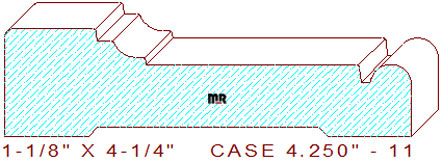

This delightful 4-1/4" - 11 door/window casing measures 4.250" width by 1.125" thickness, requiring the use of a 4-1/2" wide blank of five or six-quarter lumber for milling on an industrial moulder. The custom profile contains a 61/64" wide by 1/8" tall raised fillet with a 3/32" eased edge on the top left. The elevated section connects to a 5/32" broad line joined to a 1/4" cove with a 5/64" vertical step, merged with a 2-1/4" wide flat line segment in the center. The remaining portion of the pattern retains a 3/32" sunk fillet attached to a 7/16" full half-circle on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.750
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.00
$303.00
Total:
$626.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.00
$323.00
Total:
$666.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.00
$353.00
Total:
$726.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
