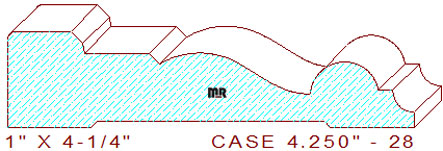

This Attractive Casing Moulding 4-1/4" - 28 measures 4.250" wide by 1.000" thickness with a .844" depth of cut on the top horizontal moulding knives. Browse our backout category for an appropriate relief cut for this pattern, we have a few options for you to select from.
The colonial style profile is comprised of a 13/16" wide elevated fillet with a 3/32" radius and a chamfer on the edges, connected to a 43/64" wide straight line with a beveled edge that transitions into a two tangent radius cyma reversa, joined to a 23/32" wide half round circle with an attached 5/32" wide straight line, and a 7/32" radius cove positioned on the thin side of the pattern. We have a good-looking baseboard detail that will compliment this pattern nicely for your review and consideration, Base Moulding 7.812 - 1.
Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood moulder, our custom moulding knife designs will mill flawlessly on them all.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
