Door/Window Casing 4-1/4" - 29

Door/Window Casing 4-1/4" - 29

Door/Window Casing 4-1/4" - 29

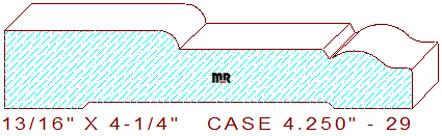

This decorative 4-1/4" - 29 door/window casing measures 4.250" wide by .812" thickness. The tiered profile is comprised of a 1-13/16" broad straight line with a 7/32" eased edge that transitions down to a 1-1/2" flat area with a beveled step in the center. Connected to a tiny sunk fillet with a two-tangent radius ogee with an eased edge on the smaller side of the design. You may want to review and consider one of our many backband profiles to install on the taller square edge of the design; here is just one from hundreds to consider, backband 1.125" - 10.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.591
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$293.00
$293.00
Total:
$586.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$313.00
$313.00
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.00
$333.00
Total:
$666.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
