Door/Window Casing 4-1/4" - 31

Door/Window Casing 4-1/4" - 31

Door/Window Casing 4-1/4" - 31

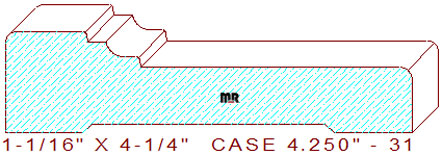

This modern 4-1/4" - 31 door/window casing measures 4-1/4" wide by 1-1/8" thickness, allowing the detail to be milled from five-quarter lumber. We offer the same pattern with a 1/4" wide by 1/8" deep notch out of the right-hand side for your review and consideration door/window casing 4.250" - 21. The beautiful profile is composed of a 27/32" wide by 7/64" tall raised fillet with a 1/8" rounded edge on the left, attached to a 3/16" broad line segment and a 3/8" wide congee derived from a 3/16" concave semicircle with a 7/64" drop in elevation, merged with a 2-23/32" wide flat line with a 1/8" eased edge on the right side of the pattern. We offer many baseboard designs that would match well with this pattern; here are just a few you may want to review and consider, baseboard 6.000" - 192 and basebaord 7.875".

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.670
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$313.00
$293.00
Total:
$606.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.00
$313.00
Total:
$646.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$353.00
$333.00
Total:
$686.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
