Door/Window Casing 4-1/4" - 33
Door/Window Casing 4-1/4" - 33

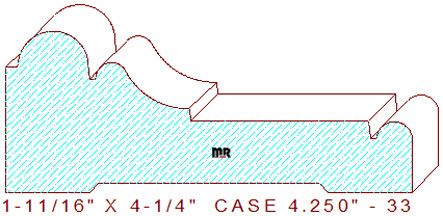

This elegant 4-1/4" - 33 door casing moulding measures 4.250" wide by 1.687" thickness, enabling a 4-1/2" wide blank of eight-quarter lumber for milling on a commercial molder. The sophisticated profile contains a 1/8" broad flat line on the top left at a 1-5/16" thickness dimension. It's connected to an elongated half-circle with a 1/16" sunk fillet, joined to a downsloping two tangent radius s-shaped curvature with a 1/8" vertical step in the center. It attaches to a 1-7/8" broad line merged with another 1/16" recessed fillet and a 3/8" wide half-round bead on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 1.291
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.00
$303.00
Total:
$646.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$363.00
$323.00
Total:
$686.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$353.00
Total:
$746.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
