Casing Moulding Profile 4-1/4" - 7

Casing Moulding Profile 4-1/4" - 7

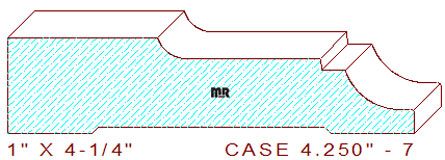

This Casing Moulding Profile 4-1/4" - 7 measures 4.250" wide by 1" thickness, the profile consist of a 1-9/16" wide fillet connected to a 1-5/8" wide cong'e that's attached to a 1/4" wide by 1/8" deep stepped fillet with an eased edge cove on the side. This pattern was specifically designed to use in conjunction with one of our backband profiles, you can search many of them under the caps category, adding one of these profiles will really make this pattern a one of a kind unique design.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
