Door/Window Casing 4-5/16"
Door/Window Casing 4-5/16"

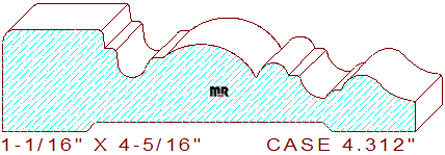

This elegantly ornate 4-5/16" door/window casing measures 4.312" wide by 1.062" thickness, permitting the detail to be milled out of five-quarter lumber. The detailed profile is composed of a 1-1/16" wide flat line with a 3/16" vertical step and a 1/8" eased edge on the left, connected to a small fillet with a 1/16" rounded edge that transitions into a 5/32" scotia with another 1/16" eased edge and a 41/64" radius arc in the center, merged with a thumbnail shaped bead that joins to a line segment with a 1/4" cove and a 1/8" quarter round bead, connected to a two tangent radius cyma reversa with a 3/64" eased edge on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.313
Depth of Cut: 0.936
Bottom Cutter Head
Width: 4.313
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
