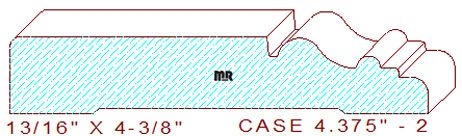

This beautifully designed case moulding measures 4-3/8" wide by 13/16" thickness, the profile is composed of a 2-11/16" wide radiused edge fillet that consumes two thirds of the detail, the remaining portion consist of a sunken fillet/ quirk, a cyma reversa attached to a half round circle and two stepped radiused edge fillets that transition to the edge of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
