Door/Window Casing 4-3/8" - 9
Door/Window Casing 4-3/8" - 9

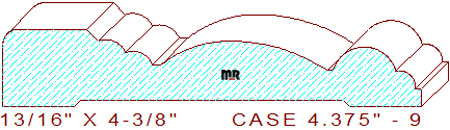

This distinguished 4-3/8" - 9 door/window casing measures 4.375" wide by .813" thickness, permitting the detail to be milled out of four-quarter lumber. The striking design is composed of a 7/8" broad line segment with a 5/32" eased edge on the top left. It's connected to a 1/8" forty-five-degree beveled edge that joins to two cascading 7/32" quarter round beads with a 3/32" sunk fillet and a 1-27/32" semicircular arc in the center, merged with a 1/16" flat line and a 21/32" half circle that connects to an 11/64" quarter round bead with a 1/16" wide fillet, leaving a 3/16" thickness dimension on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.375
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.50
$309.50
Total:
$619.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$330.00
$330.00
Total:
$660.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$360.75
$360.75
Total:
$721.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
