Door/Window Casing 4-7/16" - 8
Door/Window Casing 4-7/16" - 8

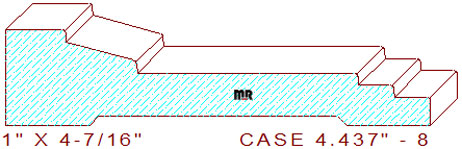

This tiered 4-7/16" - 8 door/window casing measures 4.437" width by 1.000" thickness, requiring a 4-11/16" wide blank of five-quarter lumber for milling on a commercial moulder. The stepped profile contains a 5/8" wide by 1/8" tall raised fillet on the top left. The outer edge is intentionally left square to use many sizes of our radius edges. The short fillet connects to a downsloping angled line with a 1/8" vertical step. The center contains a 2-5/16" broad area with an additional 1/8" elevation drop. The remaining portion consists of two 3/8" wide by 1/8" deep perpendicular lines leaving a 19/64" thickness on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.438
Depth of Cut: 0.901
Bottom Cutter Head
Width: 4.438
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.53
$312.78
Total:
$646.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$354.28
$333.53
Total:
$687.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$385.41
$364.66
Total:
$750.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
