Casing Moulding 4-1/2"

Casing Moulding 4-1/2"

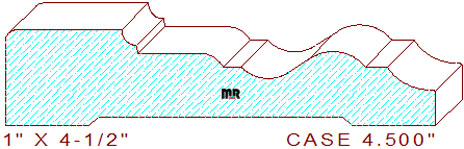

This designer casing moulding 4-1/2" measures 4.500" wide by one inch thickness, the detail will require five quarter lumber for milling on a industrial molder. The custom pattern is composed of a 1-7/32" wide horizontal line with a 1/8" eased outer edge on the left, connected to a 5/32" cove with a 5/64" vertical step that joins to a 29/32" wide line with a 9/32" rounded arc and a 3/16" wide line segment in the center, attached to a two tangent radius cyma recta merged with a 15/64" wide line and a 33/64" cove with a 3/64" eased edge on the right side of the pattern. We offer a beautiful baseboard that will compliment this lovely design for your review and contemplation, base moulding 5.500" - 18. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.500" / Depth of Cut = .821" (top knives) & .093" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
