Casing Moulding 4-1/2" - 11

Casing Moulding 4-1/2" - 11

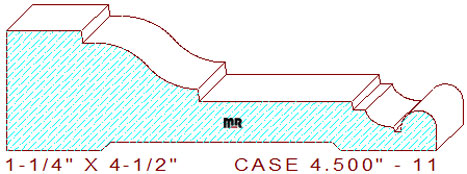

This gorgeous casing moulding 4-1/2" - 11 measures 4.500" wide by 1.250" thickness, requiring six quarter lumber for milling on an industrial molder. The profile is composed of a 13/16" wide by 1/8" tall raised fillet on the left, connected to a two tangent radius cyma reversa with another 1/8" vertical step that merges with a 1-5/8" wide line segment in the center, attached to a 1/8" wide by 3/32" deep notch and a 11/32" cove that joins to a 1/16" wide sunk fillet and a 3/8" wide half round circle on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Before you begin knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this profile will not be able to be milled on certain models of molders.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.500" / Depth of Cut = 1.174" (top knives) & .093" (bottom cutters.)
