Door/Window Casing 4-1/2" - 20
Door/Window Casing 4-1/2" - 20

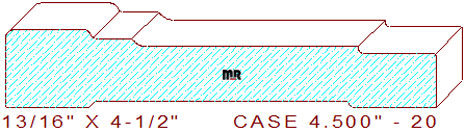

This stepped 4-1/2" - 20 door/window casing measures 4.500" wide by .812" thickness, allowing the pattern to be machined out of four-quarter lumber. The attractive stepped profile is composed of a 15/16" broad flat line segment with a 3/32" eased outer and a 5/64 rounded inner edge on the top left, joined to a 27/64" broad flat line merged with a 2-25/64" wide cong'e derived from a 3/16" cove with a 1/16" drop in elevation in the center. It's attached to a 13/16" wide line segment with a 3/64" eased edge leaving a 9/16" thickness dimension on the right side of the pattern. We offer a couple of other alternative versions of this design for your review and consideration, door/window casing 3.187" - 8 and door/window casing 4.437" - 6.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.440
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$316.00
Total:
$632.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.00
$337.00
Total:
$674.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.50
$368.50
Total:
$737.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
