Door/Window Casing 4-1/2" - 3
Door/Window Casing 4-1/2" - 3

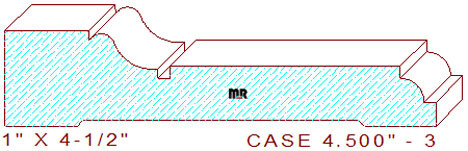

This prestigious 4-1/2" - 3 door/window casing measures 4.500" wide by 1.000" thick. The pattern was designed to be used with one of our many fancy backband. The profile is comprised of a 7/8" broad horizontal line with a 3/32" vertical step, attached to a two tangent radius cyma reversa joined to a 9/64" wide by 1/8" deep quirk, connected to a 2-13/32" broad straight line with a 1/4" radius ovolo flanked by 1/8" tall and wide lines on the thin side of the detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.00
$316.00
Total:
$653.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$358.00
$337.00
Total:
$695.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$389.50
$368.50
Total:
$758.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
