Door/Window Casing 4-1/2" - 32
Door/Window Casing 4-1/2" - 32

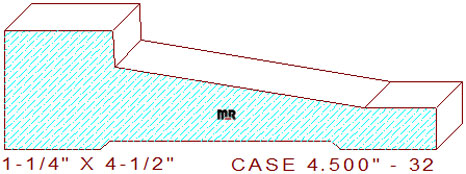

This hefty 4-1/2" - 32 beveled door/window casing moulding measures 4.500" wide by 1.250" thickness, allowing the detail to be milled from six-quarter lumber. The designer profile is composed of a 1-1/8" wide by 3/8" deep stepped line on the left, connected to a 2-5/8" wide, nine and one-half degree angled line in the center with a 3/4" broad line segment, leaving a 7/16" thickness dimension on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.812
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
