Door/Window Casing 4-1/2" - 50
Door/Window Casing 4-1/2" - 50

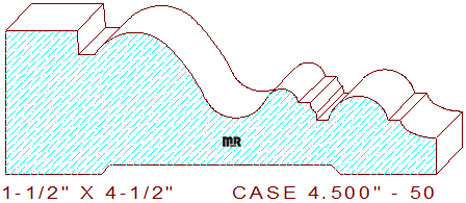

This distinctive 4-1/2" - 50 door/window casing measures 4.500" wide by 1.500" thickness. The profile is comprised of a 3/4" wide flat area connected to a 3/16" wide sunk fillet transitioning into a deep sloping cyma reversa with a half round bead in the center. It's joined to a 1/8" wide flat segment with a 1/8" radius cove and a 1/8" wide sunk fillet, attached to a 5/8" wide half-round circle with a 1/8" wide line and a 3/8" wide elliptical shaped cove on the thin side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 1.125
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.094
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.00
$316.00
Total:
$653.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$358.00
$337.00
Total:
$695.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$389.50
$368.50
Total:
$758.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
