Door/Window Casing 4-1/2" - 51
Door/Window Casing 4-1/2" - 51

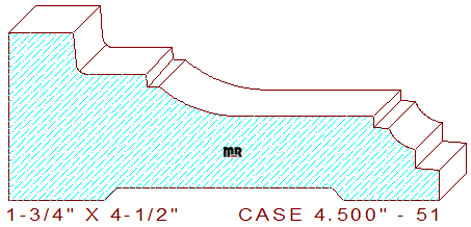

This beautifully bold 4-1/2" - 51 door/window casing measures 4.500" wide by 1.750" thickness, necessitating using eight-quarter lumber for milling on an industrial moulder. The hefty profile is composed of an 11/16" broad flat line on the top left. It's connected to a 3/4" wide by 7/16" deep notch with a 1/8" cove in the corner, joined to a much smaller 1/8" by 1/8" notch that binds to a 2-1/4" wide by 1-5/16" radius cong'e in the center. The remaining area attaches a 5/32" wide by 1/8" deep notch with a 23/64" cove and a 1/4" wide by 7/32" deep step leaving a 5/16" thickness dimension on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.750
Depth of Cut: 0.687
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.875
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
