Door/Window Casing 4-1/2" - 59
Door/Window Casing 4-1/2" - 59

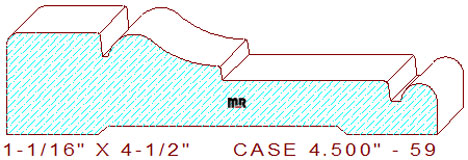

This unique 4-1/2" - 59 door/window casing measures 4.500" wide by 1.062" thickness, requiring a 4-3/4" wide blank of five-quarter lumber for milling on an industrial moulder. The stylish profile contains a one-inch wide by 1/4" tall raised fillet with a 1/8" rolled outer edge on the top left. That portion connects to a 1/16" broad line merged with a two tangent radius s-shaped curvature with a 5/32" vertical step in the center. The remaining section comprises a 1-3/4" horizontal segment with a 1/8" sunk fillet and a 3/8" wide half-circle on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.848
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.00
$316.00
Total:
$653.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$358.00
$337.00
Total:
$695.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$389.50
$368.50
Total:
$758.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
