Door/Window Casing 4-9/16"
Door/Window Casing 4-9/16"

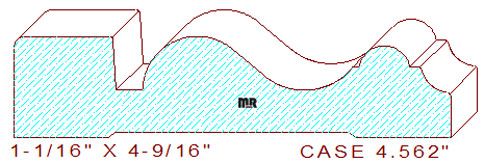

This large 4-9/16" colonial door/window casing measures 4.562" wide by 1.062" thickness. The pattern design consists of a 1-1/16" wide radiused edge fillet with a 9/16" deep by 9/32" wide quirk attached to a deep cyma reversa that transitions into a half round bead that is flanked by small fillets and a cavetto positioned on the thinner side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.562
Depth of Cut: 0.781
Bottom Cutter Head
Width: 4.562
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.47
$319.22
Total:
$659.70
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$361.72
$340.47
Total:
$702.19
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.59
$372.34
Total:
$765.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
