Stylish Casing Moulding Knife Design 4-9/16" - 1

Stylish Casing Moulding Knife Design 4-9/16" - 1

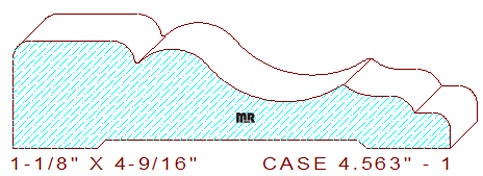

This Stylish Casing Moulding Knife Design 4-9/16" - 1 measures 4.562" wide by 1.125" thickness with a 1.093" depth of cut on the top moulding cutter. The creative profile is comprised of a 1-5/16" wide fillet with a 3/16" radius outside edge and a 1/4" radius inside edge that transitions into a cyma reversa connected to a 1/16" radius point that transforms into a reversible direction cong'e with a 3/16" radius eased edge positioned on the thin side of the pattern. Custom-made excellence is a phrase used to define the beauty, style and artisanship of all our casing moulding profile designs.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
