Door/Window Casing 4-5/8"
Door/Window Casing 4-5/8"

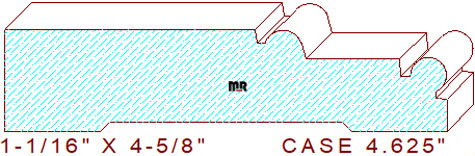

This aesthetically pleasing pencil bead 4-5/8" door/window casing measures 4.625" wide by 1.062" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The beautifully unique profile contains a 2-5/8" flat line with a 9/64" vertical step on the top left. Connected to a 7/64" sunk fillet and a thumbnail shaped convex half bead in the center. It joins to a one-inch horizontal line segment and an 11/64" deep by 3/32" wide recessed section. This area merges with a 3/8" wide three-quarter pencil bead flanked by an additional sunk portion on the right edge of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.062
Depth of Cut: 0.148
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.625
Depth of Cut: 0.488
Bottom Cutter Head
Width: 4.625
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.22
Not Needed
$322.50
$322.50
Total:
$782.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.47
Not Needed
$344.00
$344.00
Total:
$832.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.34
Not Needed
$376.25
$376.25
Total:
$907.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
