Casing Moulding 4-5/8" - 1

Casing Moulding 4-5/8" - 1

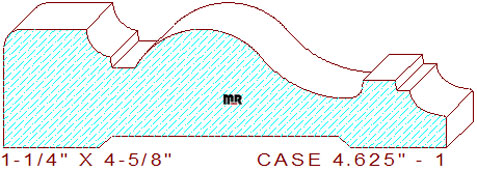

This large colonial door/window casing moulding 4-5/8" - 1 measures 4.625" wide by 1.250" thickness, necessitating the use of six quarter lumber for milling on an industrial moulder. The traditional profile is composed of a 55/64" wide flat line with a 3/16" rounded edge on the top left, connected to a 5/16" cove with a 7/64" vertical step, joined to a 1/4" sunk fillet that merges with a three tangent radius cyma reversa in the center, attached to a 11/32" wide by 7/64" tall raised fillet with a 9/64" wide line segment and a two tangent radius elliptical shaped cove with a 3/64" eased edge on the right side of the design.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.625" / Depth of Cut = 1.125" (top knives) & .125" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
