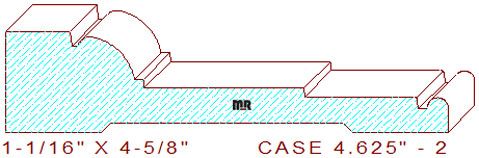

This wonderfully designed case moulding measures 4-5/8" wide by 1-1/16" thickness, the profile is composed of a thumbnail design in the thicker portion, a half round circle on the thinner side and a series of stepped fillets that transition the elevation for 1-1/16" to 3/8", a custom pressure shoe for holding down the product while milling would be recommended.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
