Door/Window Casing 4-11/16"
Door/Window Casing 4-11/16"

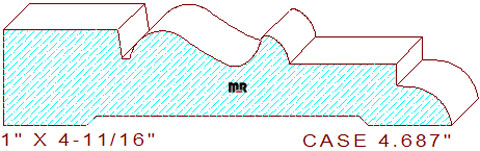

This unique 4-11/16" door/window casing measures 4.687" wide by 1.000" thickness, allowing the detail to be machined out of five-quarter lumber. The stylish profile is composed of a 1-1/4" wide straight flat line on the top left, joined to a 1/8" wide by 19/64" deep sunk fillet that intersects with an elevation changing two tangent radius cyma reversa with a beak-shaped edge, connected to a 1-7/64" wide line segment with a 1/4" vertical step and a 15/32" quarter round arc on the right side of the pattern. Try utilizing one of our many different backband .750" - 5 profiles on the outer edge of this pattern, create a stylish and unique door or window casing design for your beautiful home or office
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.688
Depth of Cut: 1.000
Bottom Cutter Head
Width: 4.688
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$347.53
$325.78
Total:
$673.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$369.28
$347.53
Total:
$716.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$401.91
$380.16
Total:
$782.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
