Door/Window Casing 4-11/16" - 1
Door/Window Casing 4-11/16" - 1

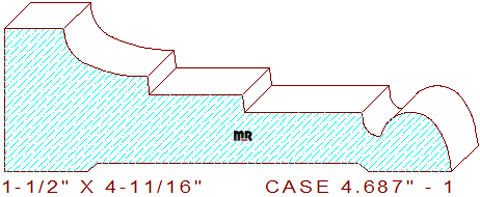

This decorative 4-11/16" - 1 door/window casing measures 4.687" wide by 1.500" thickness, necessitating the use of eight-quarter lumber for milling on an industrial moulder. The attractive tiered profile is composed of a 5/8" broad flat line on the top left, connected to an elliptical shaped cavetto that transitions the elevation 1/2" in depth with a 3/16" vertical step, attached to a one-inch wide flat line with another 3/16" change in height, this area merges with a 1-1/4" wide line segment and an 11/64" cove with an elliptically shaped half round arc on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.363
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.688
Depth of Cut: 1.125
Bottom Cutter Head
Width: 4.688
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$160.00
Not Needed
$347.53
$325.78
Total:
$833.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
Not Needed
$369.28
$347.53
Total:
$885.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
Not Needed
$401.91
$380.16
Total:
$964.56
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
