Door/Window Casing 4-3/4" - 1
Door/Window Casing 4-3/4" - 1

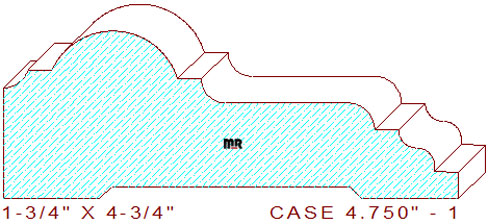

This distinguished 4-3/4" - 1 door casing measures 4.750" wide by 1.750" thickness, requiring eight-quarter lumber for machining on an industrial moulder. The beautifully notable profile is composed of a 1-5/16" wide half-round circle flanked by a 1/4" wide line and a 1/4" cove with a 3/64" eased edge on the top left. It's connected to a 1/4" wide line that joins to a bidirectional cong'e with a 1/4" wide fillet in the center, attached to a two tangent radius cyma recta with another 1/4" wide line segment on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.750
Depth of Cut: 0.625
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 1.032
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.00
Not Needed
$351.00
$329.00
Total:
$853.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$183.00
Not Needed
$373.00
$351.00
Total:
$907.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$198.00
Not Needed
$406.00
$384.00
Total:
$988.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
