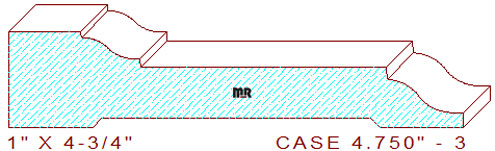

This Stylish Casing Moulding 4-3/4" - 3 measures 4.750" wide by 1.000" thickness with a .844" depth of cut on the top horizontal set of moulding knives. Browse our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The double ogee design is comprised of a 3/4" wide by 1/16" deep stepped fillet, attached to two 3/8" radius tangent arcs with a 3/32" tall vertical fillet, connected to a 2-9/16" wide by 1/8" deep stepped horizontal line in the center, joined to two 7/16" radius tangent semicircles, creating a cyma reversa on the thin side of the pattern. We also have the same detail in a smaller size available for your review and consideration, Casing 4.000" - 68. Try utilizing one of our many different size backband mouldings on the side of this pattern, create a stylish and unique casing design for your beautiful home or office, simply alter the search parameters to find the size width backband you desire.
Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative moulding knife designs for years, we trust you will find that special moulding profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
