Door/Window Casing 4-3/4" - 6
Door/Window Casing 4-3/4" - 6

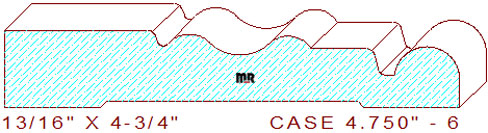

This beautiful 4-3/4" - 6 door/window casing measures 4.750" wide by .812" thickness, allowing four-quarter lumber for milling. The fashionable profile is composed of a 1-37/64" broad segment on the left. This area was intentionally left square for the use of one of our many backband profiles; here's just one you may want to review and consider, backband 1.062" - 2. The center of the detail consists of a four tangent radius wave-like design and a 21/32" wide line segment with a 3/32" rounded edge, connected to an 11/64" wide sunk fillet that joins to an 11/16" wide half circle on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.671
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$351.00
$329.00
Total:
$680.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.00
$351.00
Total:
$724.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$406.00
$384.00
Total:
$790.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
