Door/Window Casing 4-13/16" - 1
Door/Window Casing 4-13/16" - 1

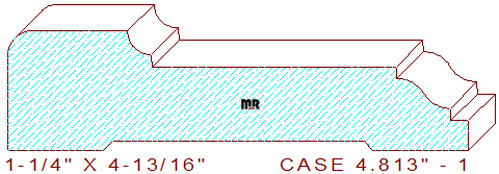

This beautiful 4-13/16" - 1 door/window casing measures 4.812" wide by 1.250" thickness, allowing the pattern machining out of six-quarter lumber. The well-proportioned profile is composed of a 1-1/4" broad flat line with a 1/4" rounded edge on the left, connected to a 1/4" cove with a 1/8" drop in elevation merged with a 2-9/16" broad line segment in the center, joined to a 1/8" vertical line that transitions into a two tangent radius ogee constructed from 21/64" radius semicircles with a 3/16" wide by 1/8" deep notch on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.813
Depth of Cut: 0.938
Bottom Cutter Head
Width: 4.813
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$354.53
$332.28
Total:
$686.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$376.78
$354.53
Total:
$731.31
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$410.16
$387.91
Total:
$798.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
